คุณสมบัติ
– สามารถรับไฟเข้าที่ 4.5V – 40V
– แรงดันไฟขาออก 5V
– กระแสไฟขาออก 2A
– ช่องไฟขาออกเป็น USB
– ขนาด 57mm x 20mm x 10mm
Description
– The voltmeter has automatic calibration function.
– With reverse connection protection.
– With overheat protection and short circuit protection.
– With USB power indicator light.
– High efficiency and low ripple.

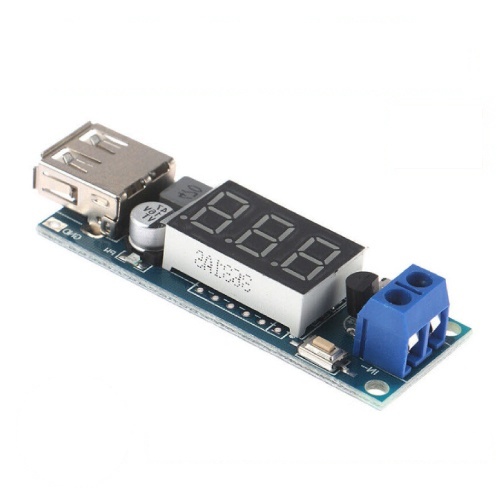

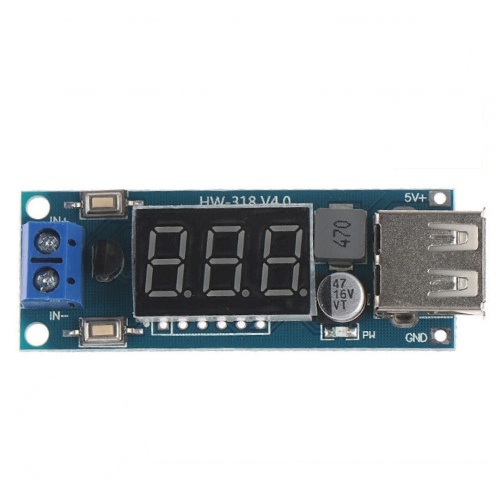

– Name:Step down voltmeter module
– Input voltage:DC 6 ~ 40V.
– Output voltage:5V (when the input voltage is between 6.5V ~ 40V).
– Output current:2A.
– Application: can be used on car electric bike motorcycle for voltage measurement and to charge phone iPad Mp3 etc.
– Size:approx 5.7cm x 2cm x 1cm(LxWxH)
– Color:blue
– Material:CCL
Instructions
When you need to charge the mobile phone Ipad MP3 and other digital products touch the “output enable” button then the USB power indicator light on the USB output voltage 5V ; When you need to turn off the digital tube touch the “low power” button then the module into the ultra-low power standby mode USB output is also turned off accordingly.
