คุณสมบัติ
– เหมาะกับการวัดไฟของถ่าน Lithium Battery Li-ion 18650

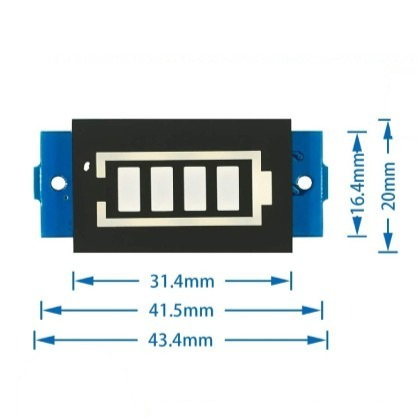

– ขนาด 4.3cm x 2cm x 1cm

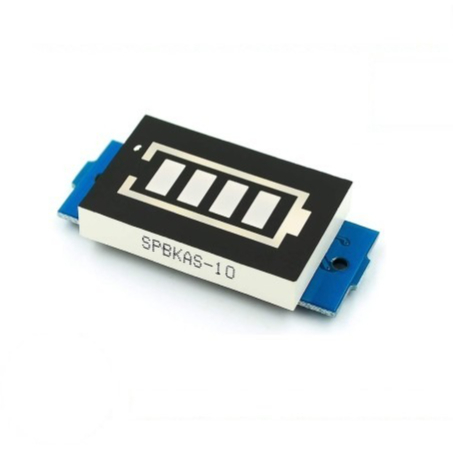

– หน้าจอไฟชัดเจน
– โชว์ปริมาณไฟ 4 ระดับ (100% 75% 50% 25%)
โมดูลการวัดไฟมี 4 ชนิด
– 1S = 3.3V – 4.2V
– 2S = 6.6V – 8.4V
– 3S = 11.1V – 12.6V
– 4S = 13.2V – 16.8V
– 6S = 19.8V – 25.2V
– 7S = 23.1V – 29.4V
Description
– Battery type electricity quantity display
– Wide application fields:lithium battery
– Using Method:connect display board positive and negative port with tested battery positive and negative portdigital tube will display real-time battery electricity quantity
– Digital Color:outline reddisplay block blue (when battery electricity quantity is fullit will be all on)
Display Electricity Quantity Parameter
– When battery voltage is over N*3.3Vit will illuminate 1 block electricity quantity (note:N represents battery quantity)
– When battery voltage is over N*3.5Vit will illuminate 2 blocks electricity quantity
– When battery voltage is over N*3.7Vit will illuminate 3 blocks electricity quantity
– When battery voltage is over N*3.9Vit will illuminate 4 blocks electricity quantity
– When battery voltage is less than N*3.3V4 blocks display will be off;it represents battery is less than 3.3Vand you can charge the battery
